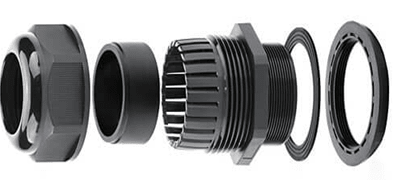

PG Plastic Waterproof Cable Gland
.png)
.png)

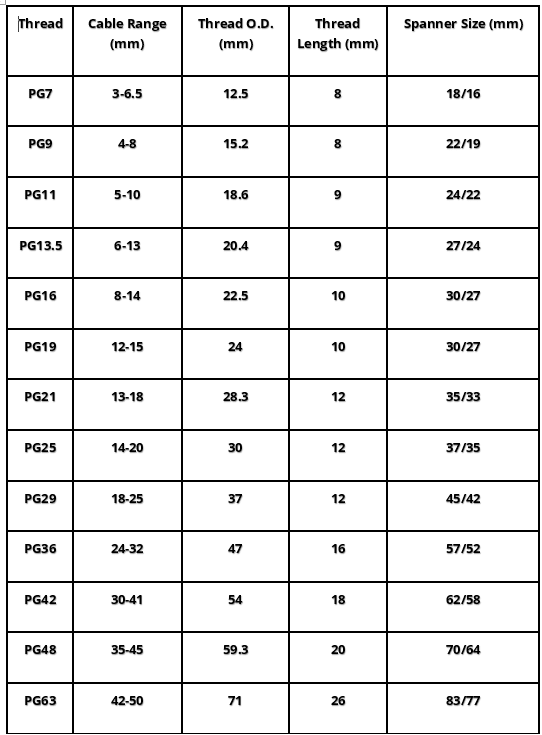

Sizes and Specification of PG Group Cable Glands:
.png)
Details
- Thread: PG7
- Protection Level: IP68-10 Waterproof: Yes
- Material: Nylon 66
- Working Temperature: -40℃~+100℃ (short work in +120℃)
Features
- Excellent Strain Relief
- UL Approved
- RoHS Compliant
- ISO9001:2015 Certified
To make a watertight air vent that allows airflow while keeping moisture out, they can be placed over ventilation apertures. These parts are frequently utilised in a variety of contexts, from manufacturing facilities to maritime settings.
For orders or Quote, E-mail at: info@headlandengineering.com.au

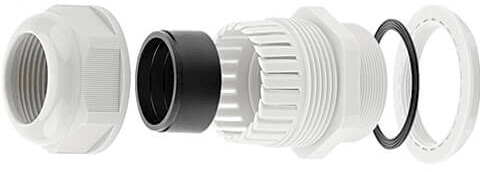

Metric Plastic Waterproof Cable Gland

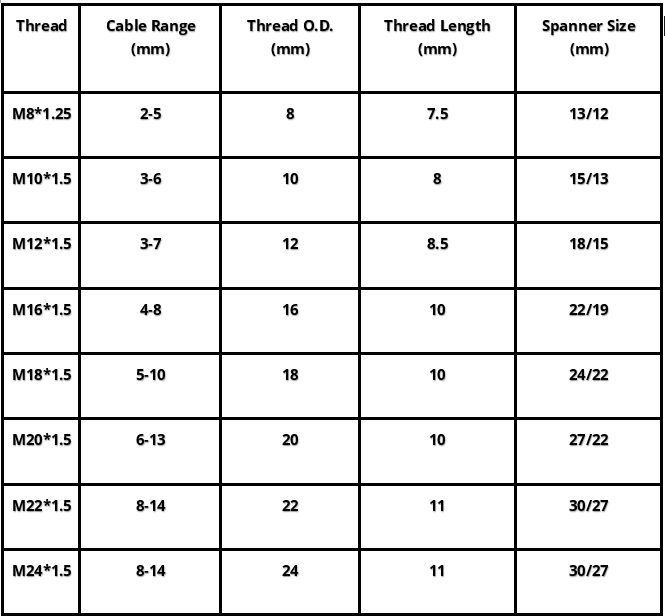

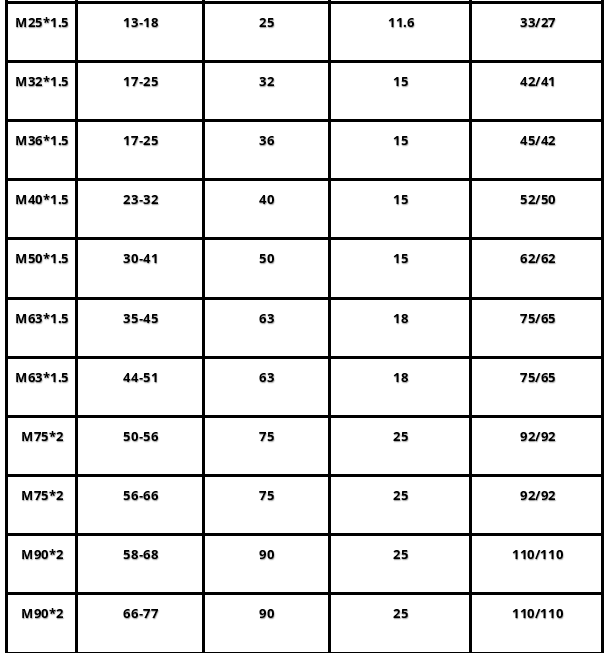

Sizes and Specification of Metric Group Cable Glands:
Details
- Thread: As required
- Protection Level: IP68-10
- Waterproof: Yes
- Material: Nylon 66
- Working Temperature: -40℃~+100℃ (short work in +120℃)
Features
- Excellent Strain Relief
- UL Approved
- RoHS Compliant
- ISO9001:2015 Certified
Cable glands are essential components in electrical installations, providing secure connections and protecting cables from environmental factors. Designed with versatility in mind, these cable glands can accommodate various thread requirements, ensuring compatibility with different systems. With an impressive IP68-10 protection level, they are fully waterproof, making them suitable for challenging environments. Constructed from durable Nylon 66, these glands offer excellent resistance to impact and wear. They operate effectively within a temperature range of -40℃ to +100℃, with the capability to handle short-term peaks up to +120℃. This makes them ideal for use in both industrial and outdoor applications, where reliability and resilience are crucial.
For orders or Quote, E-mail at: info@headlandengineering.com.au
Waterproof Metal Cable Gland

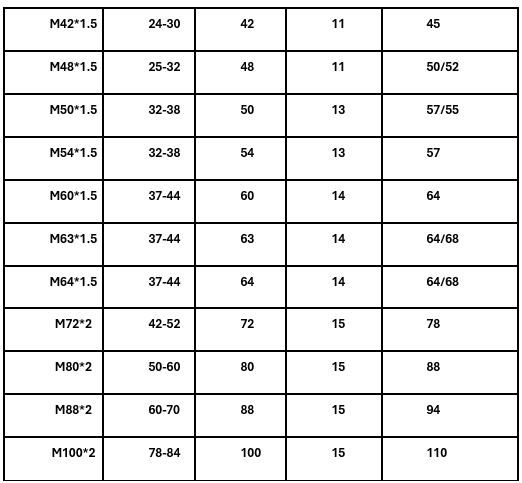

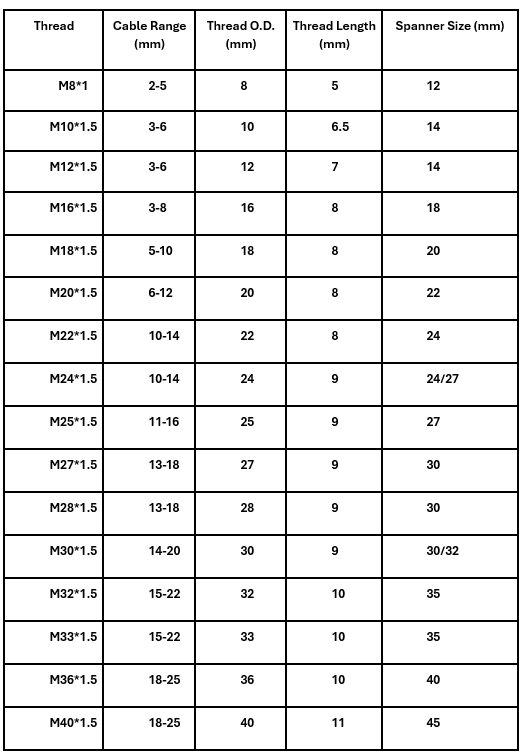

Sizes and Specification of M20 Metal Group Cable Glands
Details
- Thread: Metric or as required
- Protection Level: IP68-10
- Waterproof: Yes
- Material: Nickel Plated Brass and Nylon 66
- Working Temperature: -40℃~+100℃ (short work in +120℃)
Features
- Excellent Strain Relief
- UL Approved
- RoHS Compliant
- ISO9001:2015 Certified
For orders or Quote, E-mail at: info@headlandengineering.com.au

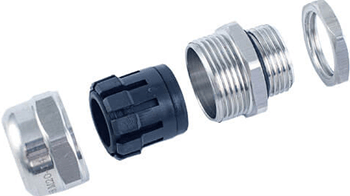

Explosion Proof Cable Glands

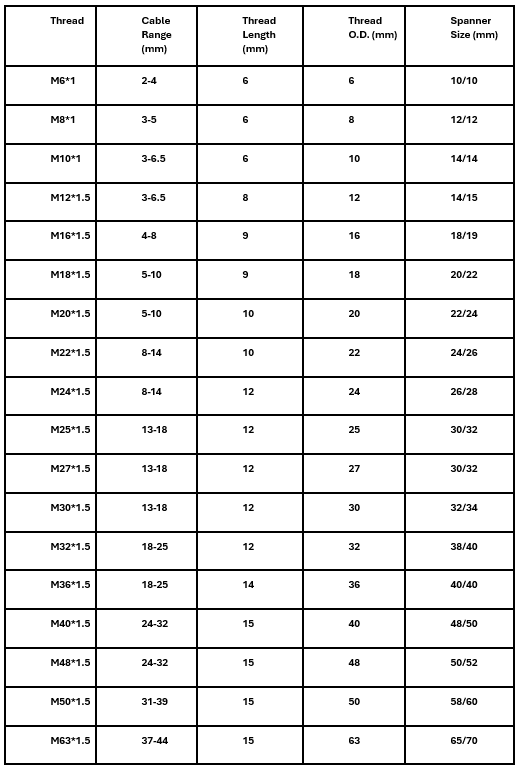

Sizes and Specification of Metric Metal Group Cable Glands:
Details
- Explosion Proof: EXD II
- Protection Level: IP68-10
- Waterproof: Yes
- Material: 304 Stainless Steel and Nylon 66
- Working Temperature: -40℃~+100℃ (short work in +120℃)
Features
- Excellent Strain Relief
- UL Approved
- RoHS Compliant
- ISO9001:2015 Certified
For orders or Quote, E-mail at: info@headlandengineering.com.au
