Selection Guide to Hose Clamps

All Parts are made by stainles steel grade 430, 304 and 316. According to the requirement of customers, materials such as AISI201,AISI301 are also available.
Size (mm)
Screw (mm)
68-73
M10 x 70
74-79
M10 x 70
80-89
M10 x 70
86-91
M10 x 70
92-97
M10 x 70
98-103
M10 x 70
104-112
M10 x 70
113-121
M10 x 70
122-130
M10 x 90
131-139
M10 x 90
140-148
M10 x 90
149-161
M10 x 90
162-174
M10 x 90
175-187
M10 x 90
188-200
M10 x 90
201-213
M10 x 100
214-226
M10 x 100
227-239
M10 x 100
240-252
M10 x 100
248-260
M10 x 100
Band: 30*1.7mm Suggested Install Torque: 30Nm
  • W1: All parts are made by Galvanized Steel
  • W2: Screw: Galvanized Steel, Band and housing: Stainless Steeel 430 grade
  • W5: All parts are made by stainless steel 316 grade
  • W4: All parts are made by Stainless Steel 304 grade
CONTACT US

A WIDE RANGE AVAILABLE

Hose clamps hold the world together with a secure grip!.......................................................................................................................................(MOQ: 100-200)
Galvanized Steel, AISI430, 304, and 316ss material.
  • Galvanized Steel: Galvanized steel is steel coated with a layer of zinc to prevent rust and corrosion.
  • AISI430: Ferritic stainless steel consists of iron-chromium alloys with minimal carbon content. This type of steel is magnetic and offers excellent corrosion resistance, making it well-suited for various industrial uses, including automotive parts and kitchen equipment.
  • Grade 304 stainless steel is widely used for its strength, toughness, corrosion resistance, and ease of fabrication. Its 18% chromium and 8% nickel composition ensure durability, excellent formability, and resistance to corrosive environments.
  • 316 grade stainless steel, sometimes referred to as A4 stainless steel or marine grade stainless steel.The primary alloying elements in addition to iron are chromium (16–18%), nickel (10–12%), and molybdenum (2–3%), with up to 2% manganese. Trace amounts of silicon, phosphorus, and sulfur (less than 1%) are also included.
DIN Type
Size range available from 8mm to 180mm

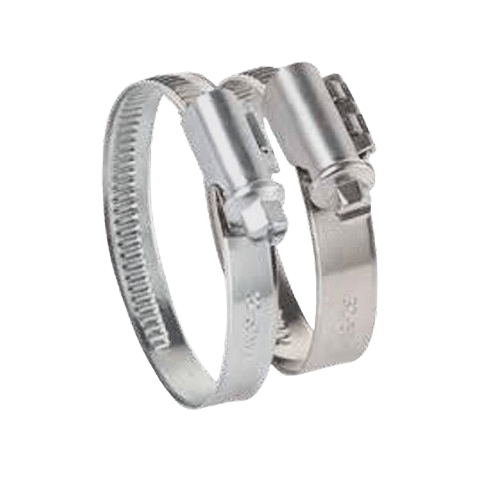

Torro Type
Size range available from 8mmto 200mm

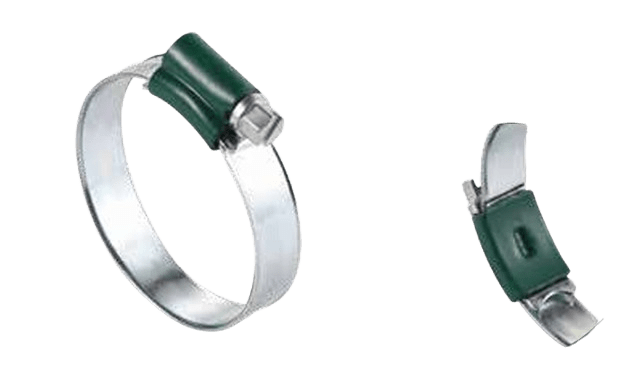

British Type
With tube housing, welding hosing, and riveting housing

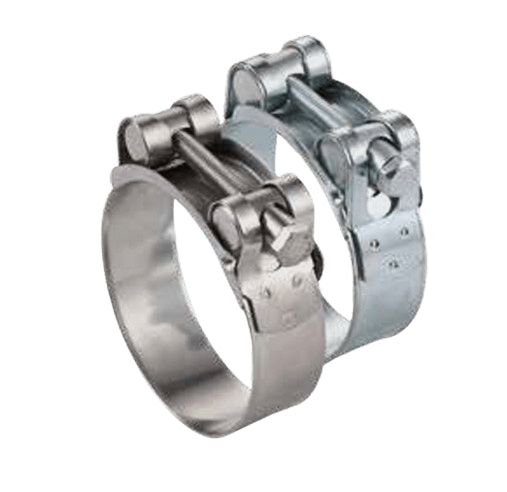

Robust Super Clamp
Size range available from 17mmto 200mm

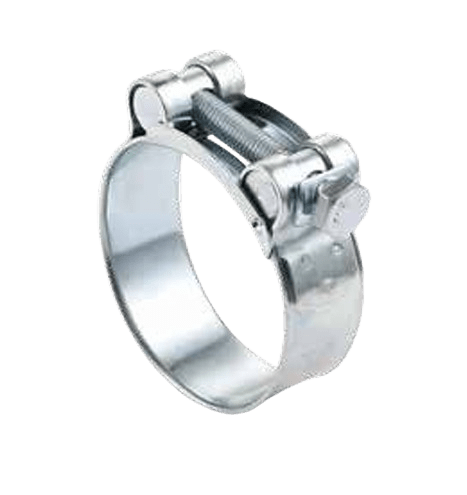

Heavy Duty Super Clamp
Size range available from 68mmto 260mm

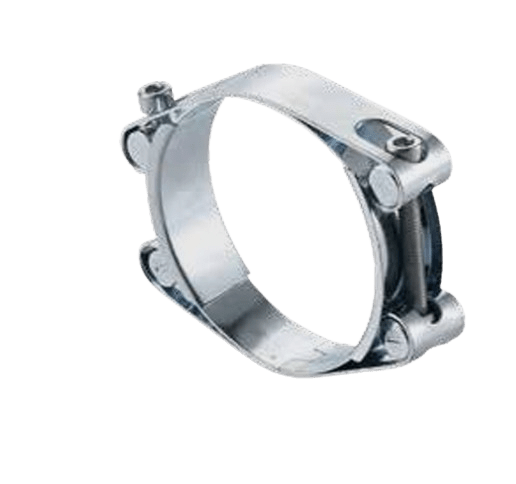

Double Bolt Super Clamp
Size range available from 35mmto 180mm

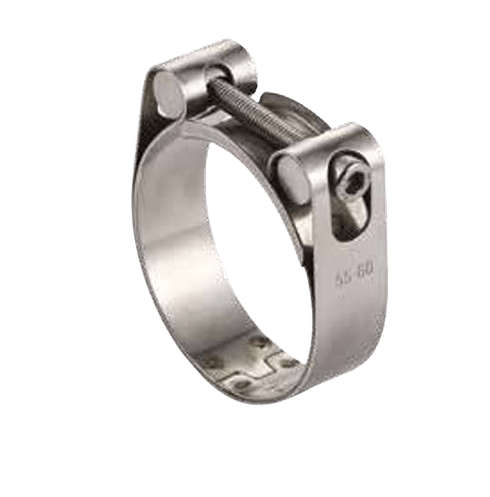

Unitory Bolt
Unitory bolt double band super clamp. Size range available from 35mm to 150mm

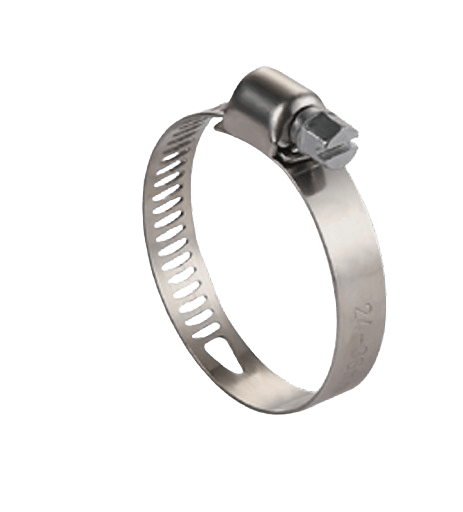

American Type
All Sizes. American type hose clamps- perforated band, with housing, heavy duty, quick release

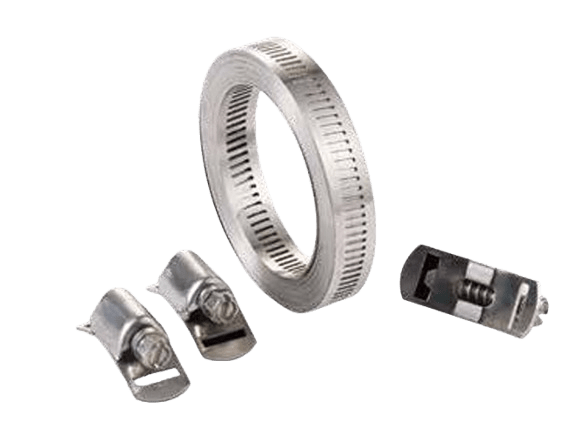

Perforated Band Roll
Bandwidth 8.0mm and 12.7mm with AISI304 and 316 SS material

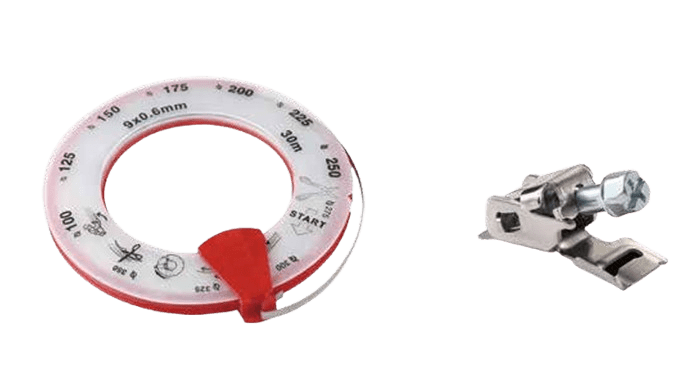

Non- perforated Band Roll
Length of band 30m, bandwidth 9mm with AISI430 and 304 SS Material

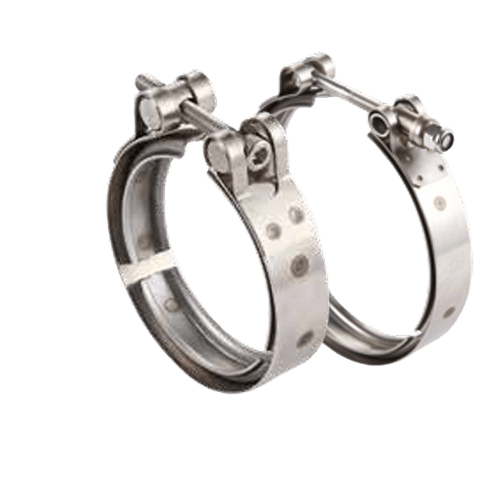

V- band Clamp
Quick release V-band clamp and T-bolt V-band clamp

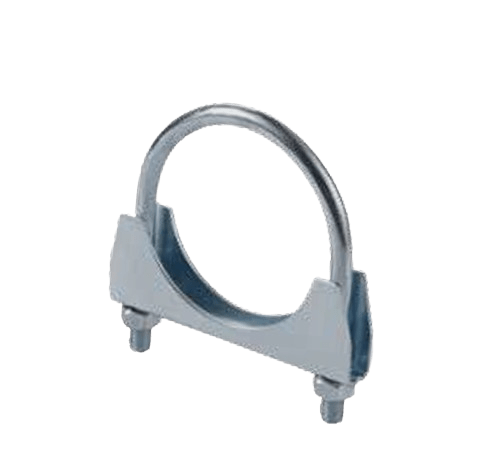

U- type clamp
Size range available from 26mmto 130mm

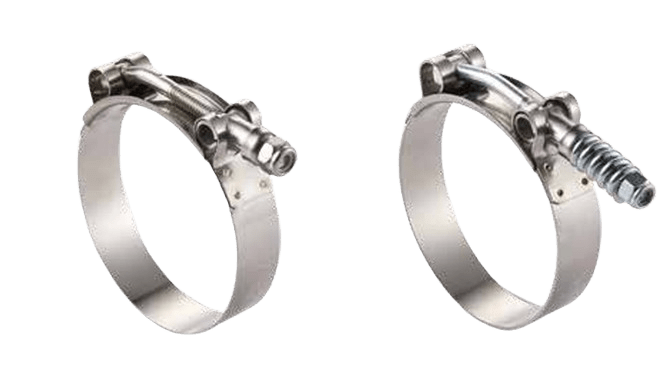

T-bolt clamp
T-bolt with spring clamp. Size range available from 37mm to 192mm

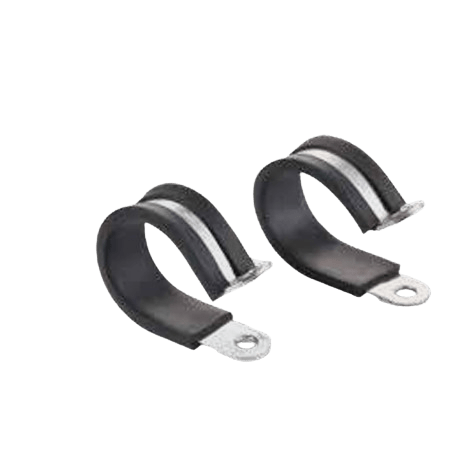

P-type hose clamps
With EPDM rubber. Badwidth 9mm, 12mm, 15mm, 20mm and 25mm in various sizes
Pipe Clamp
Size range available from 15mmto 220mm. Screw M6 * 20mm

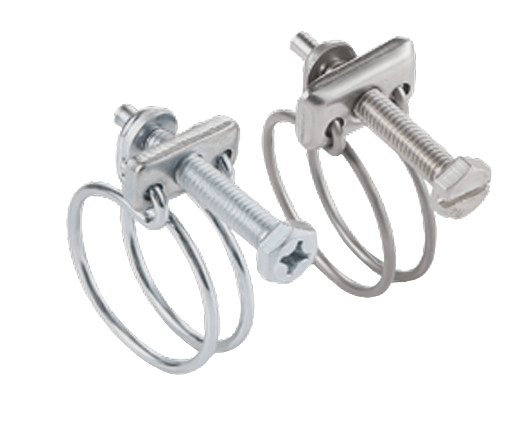

Double Wires
Double Wired hose clamps. Size range available from 11mm to 60mm

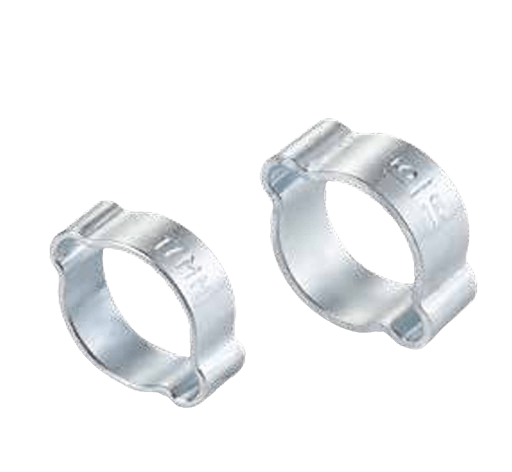

Two Ears Hose Clamps
Size range available from 3mm to 46mm

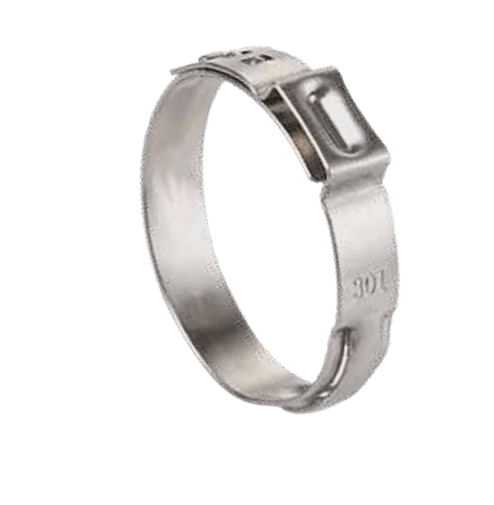

Single Ear Hose Clamp
Size range available from 6mm to 50mm

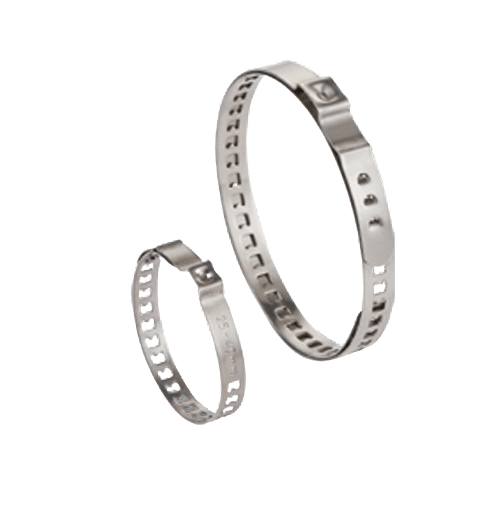

CV Joint Clamp
Size range available from 25mm to 120mm

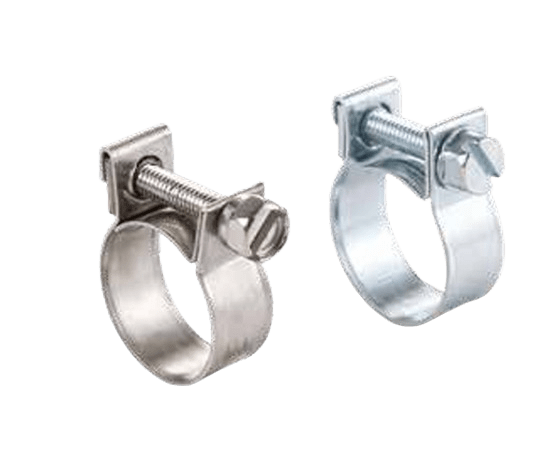

Mini Hose Clamp
Size range available from 6mm to 30mm

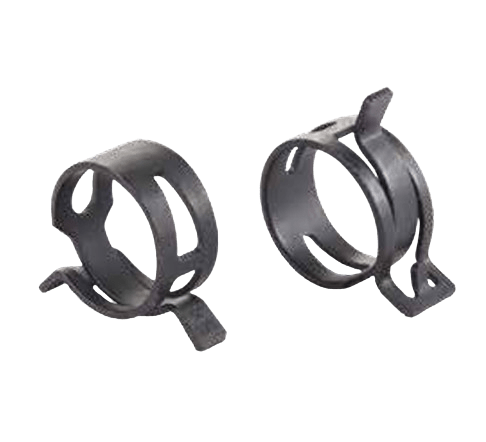

Spring Hose Clamp
Size range available from 6.5mm to 34.0mm. 65Mn coated with black zinc
Cable Ties
StainlessSteel Cable Ties, Nylon Cable Ties and Double Wired hose clamps

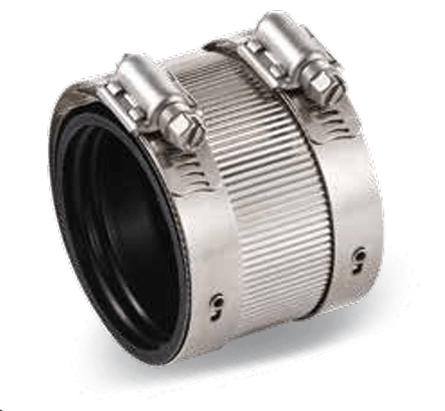

Pipe Coupling
Type A, B, Heavy Duty Type A, Type D, CHA, F, E, and G

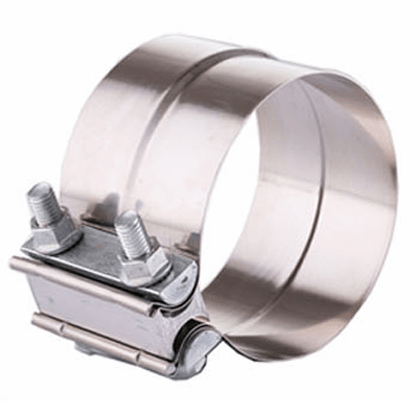

Exhaust Clamp
Accuseal exhaust clamp, flat exhaust clamp, and coupler exhaust clamp
